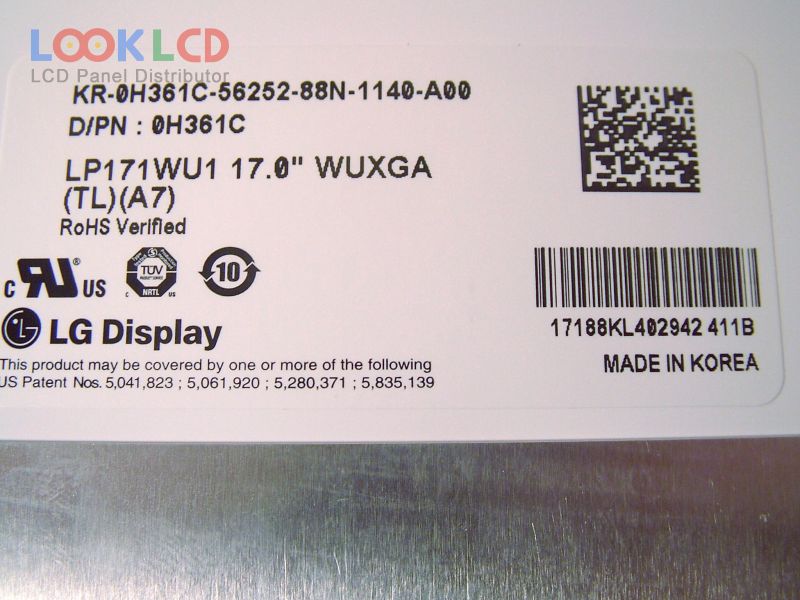

| PartNumber | LP171WU1-TLA7 |
| Brand | LG Display |
| Size | 17.1 |
| Application | NBPC |
| Resolution | 1920(RGB)×1200 , WUXGA |
| Composition | LCM |
| Brightness | 260 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | LG Display |
| Panel Model | LP171WU1-TLA7 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 17.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 367.2×229.5 mm |
| Outline | 382.2×253×7 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (4H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 65/65/55/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
