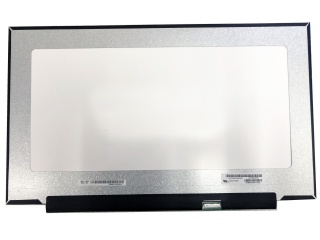

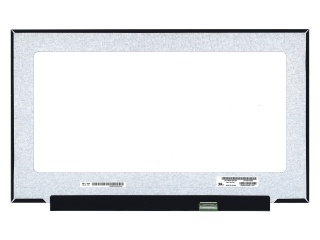

| PartNumber | LP173WF5-SPZ1 |
| Brand | LG Display |
| Size | 17.3 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 127PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | LG Display |
| Panel Size | 17.3" |
| Display Area | 381.888(W)×214.812(H) mm |
| Outline Size | 389.89(W)×238.31(H) ×3.5(D) mm |
| Viewing Angle | 80/80/80/80 (MIn.)(CR≥10) |
| Best View on | Symmetry |
| Display Colors | 16.2M 72% NTSC |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | LP173WF5-SPZ1 (LGD063B) |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | IPS, Normally Black, Transmissive |
| Response Time | 25 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
