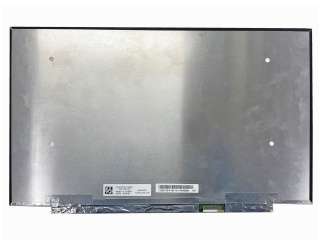

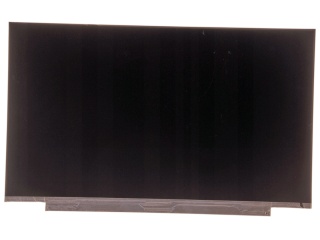

| PartNumber | LQ156M1JW04 |
| Brand | Sharp |
| Size | 15.6 |
| Application | Laptop Gaming |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | - |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Sharp |
| Panel Model | LQ156M1JW04 |
| Panel Size | 15.6" |
| Panel Type | Oxide TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Size | 350.66(W)×215.54(H) ×2.6(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | New Mode2, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 8 (Typ.)(Tr+Td) |
| Display Colors | 16.7M |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 240Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -25 ~ 60 °C |
