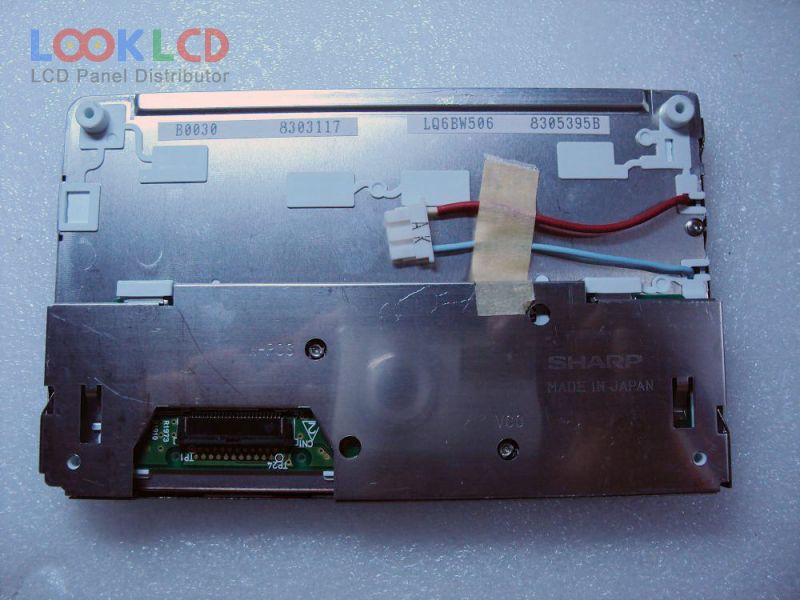

| PartNumber | LQ6BW506 |
| Brand | SHARP |
| Size | 5.8 |
| Application | CNS |
| Resolution | 400(RGB)×234 |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 60:1 |
| Colors | |
| Backlight | CCFL |
| Interface | Analog |
| Panel Brand | SHARP |
| Panel Model | LQ6BW506 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 5.8 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 127.2×71.8 mm |
| Outline | 145×89 mm |
| Surface | Antiglare, Antireflection |
| Contrast Ratio | 60:1 (Min.) |
| Display Colors | |
| Response Time | 30/50 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/40/65 (Typ.)(CR≥5)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | Analog RGB + Composite Video (NTSC/PAL), 24 pins |
| Input Voltage | 5.3/13.0/-16.0V (Typ.)(VSH/VGH/VGL) |
