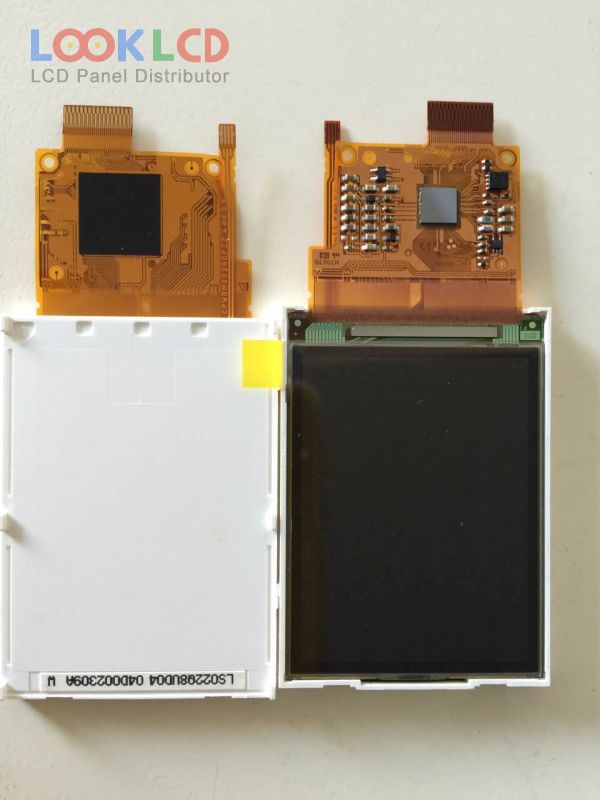

| PartNumber | LS022Q8UD04 |
| Brand | SHARP |
| Size | 2.2 |
| Application | MPH |
| Resolution | 240(RGB)×320 , QVGA |
| Composition | LCM |
| Brightness | 135 cd/m² (Typ.) |
| CR | 100:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | CPU |
| Panel Brand | SHARP |
| Panel Model | LS022Q8UD04 |
| Panel Type | CG-Silicon , LCM |
| Panel Size | 2.2 inch |
| Display Mode | TN, Normally White, Transflective |
| Active Area | 33.84×45.12 mm |
| Outline | 41×88.37 mm |
| Surface | |
| Contrast Ratio | 100:1 (Typ.)(Transmissive) |
| Display Colors | 262K |
| Response Time | 13/35 (Typ.)(Tr/Td) |
| Viewing Angle | 40/40/40/45 (Typ.)(CR≥3)(L/R/U/D) |
| Lamp Type | 4S1PWLEDWithout Driver |
| Signal Interface | CPU, 33 pins |
| Input Voltage | 3.0V (Typ.)(VDD) |
| BT055FWM-N00 | BOE | 5.5 | 480×854 |
| BTL507212-W749L | BOE | 5.0 | 720×1280 |
| C0283QGLD-T | CMEL | 2.8 | 240×320 |
| DLC0220BMG | Other | 2.2 | 240×320 |
| H027QT01 | AUO | 2.7 | 208×320 |
| H380VW01 V2 | AUO | 3.8 | 480×800 |
| H650DAN01.0 | AUO | 6.4 | 1080×1920 |
| LS022Q8UD04 | SHARP | 2.2 | 240×320 |
| TD025THED2 | TPO | 2.5 | 320×240 |
| TM055JVZG02 | Tianma | 5.5 | 720×1280 |
