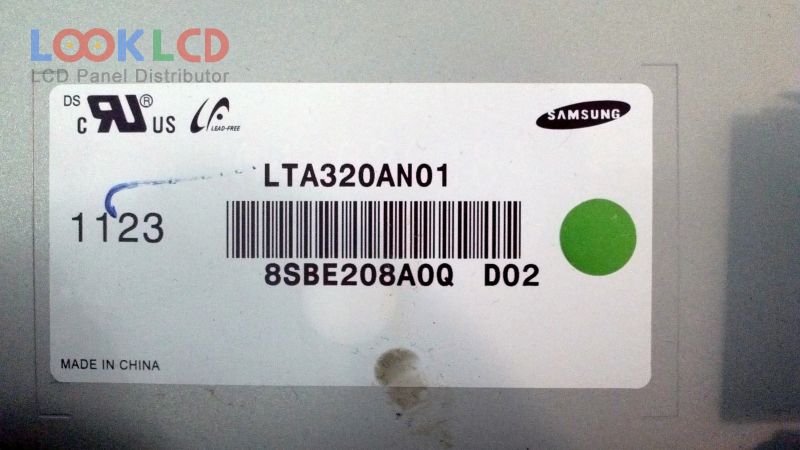

| PartNumber | LTA320AN01-D |
| Brand | Samsung |
| Size | 31.5 |
| Application | LCTV |
| Resolution | 1366×768(RGB) , WXGA |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 4000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA320AN01-D |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 31.5 inch |
| Display Mode | PVA, Normally Black, Transmissive |
| Active Area | 697.685×392.256 mm |
| Outline | 734.4×430.3 mm |
| Surface | Antiglare (Haze 7%), Hard coating (3H) |
| Contrast Ratio | 4000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193168% |
| Response Time | 20 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 12.0V (Typ.) |
