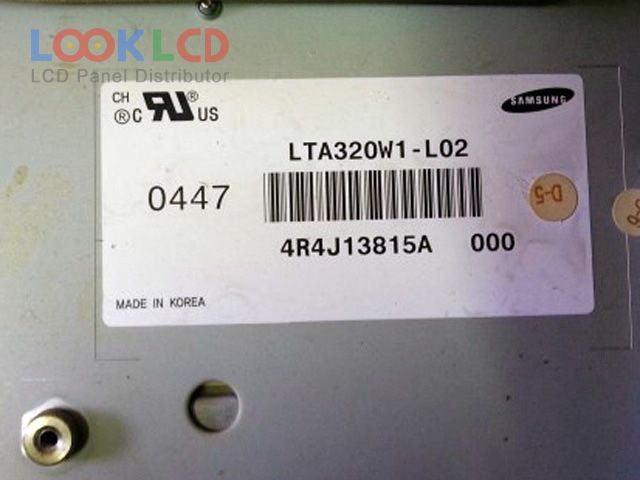

| PartNumber | LTA320W1-L02 |
| Brand | Samsung |
| Size | 31.5 |
| Application | LCTV |
| Resolution | 1280(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA320W1-L02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 31.5 inch |
| Display Mode | PVA, Normally Black, Transmissive |
| Active Area | 687.36×412.42 mm |
| Outline | 745.6×426.6 mm |
| Surface | Antiglare (Haze 44%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 15/8 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 16 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (1 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
