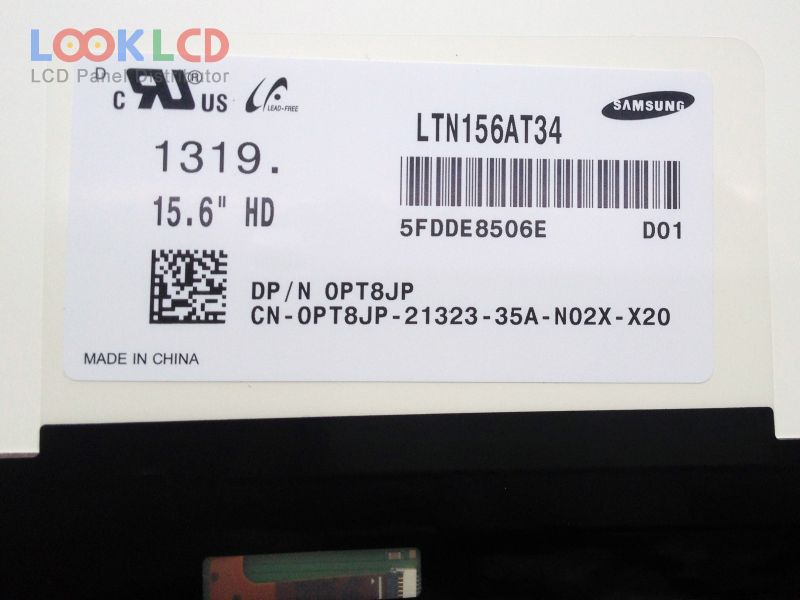

| PartNumber | LTN156AT34-D01 |
| Brand | Samsung |
| Size | 15.6 |
| Application | NBPC |
| Resolution | 1366(RGB)×768 , WXGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTN156AT34-D01 5 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 344.232×193.536 mm |
| Outline | 359.5×223.8×3.2 mm |
| Shape Style | Slim (PCBA Flat, Depth ≤3.2mm) |
| Surface | Glare (Haze 0%) |
| Contrast Ratio | 500:1 (Min.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 16 (Typ.)(Tr+Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
| Signal Interface | LVDS (1 ch, 6-bit), 40 pins |
| Input Voltage | 3.3V (Typ.) |
