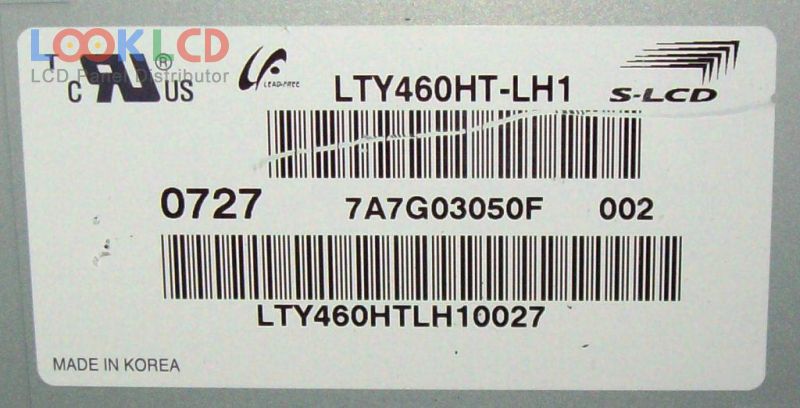

| PartNumber | LTY460HT-LH1 |
| Brand | Samsung |
| Size | 46 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 1700:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | S-LCD |
| Panel Model | LTY460HT-LH1 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 46 inch |
| Display Mode | SPVA, Normally Black, Transmissive |
| Active Area | 1018.08×572.67 mm |
| Outline | 1083×627×57.1 mm |
| Surface | Hard coating (3H) |
| Contrast Ratio | 1700:1 (Typ.) |
| Display Colors | 1.07B (10-bit), CIE193191% |
| Response Time | 10/6 (Typ.)(Tr/Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (Balance board) |
| Signal Interface | LVDS (2 ch, 8-bit), 51 pins |
| Input Voltage | 12.0V (Typ.) |
