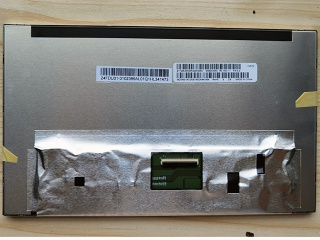

| PartNumber | M090AWA5 R0 |
| Brand | IVO |
| Size | 9.0 |
| Application | Outdoor High Brightn |
| Resolution | 1280×720 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 7S4P WLED , 15K hours , No Driver |
| Interface | |
| Manufacturer | IVO |
| Model Name | M090AWA5 R0 |
| Screen Size | 9.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1280(RGB)×720 (WXGA) 163PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 198.72 × 111.78 (H×V) |
| Outline(mm) | 212.2 × 127.5 × 10.5 (H×V×D) |
| Bezel Area(mm) | 201.72 × 114.78 (H×V) |
| Treatment | Antiglare, Hard coating (3H), Reflection 6.0% (Max.) |
| Luminance | 880 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | IPS, Normally Black, Transmissive |
| Color Depth | 16.7M 70% NTSC |
| Mass | 335g (Max.) |
| Used for | Outdoor High Brightness Automotive Display |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C ; Vibration Level: 2.9G (28.4 m/s²) |
