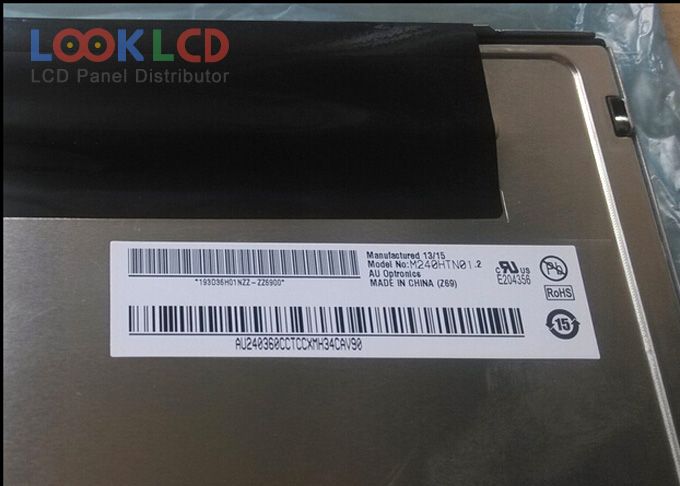

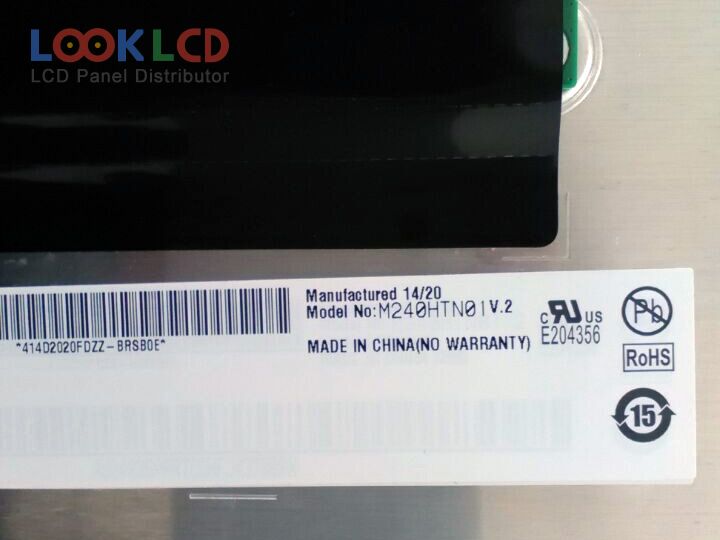

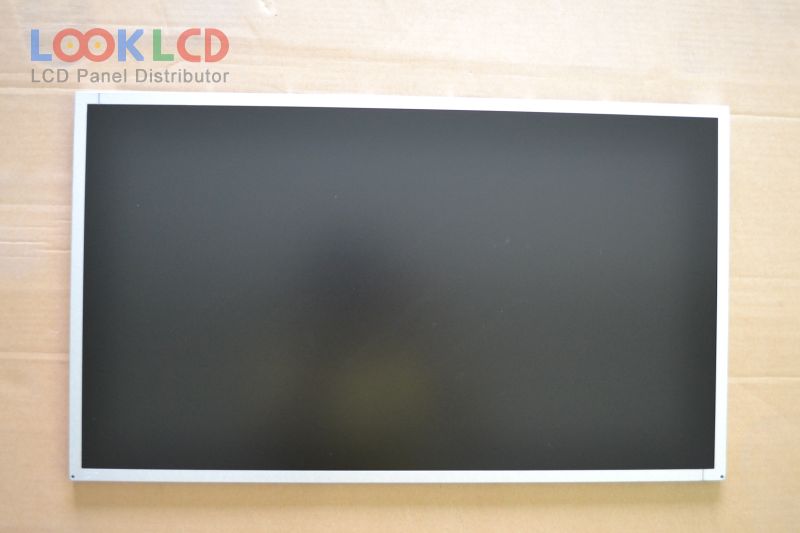

| PartNumber | M240HTN01.2 |
| Brand | AUO |
| Size | 24.0 |
| Application | DMPC |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | AUO |
| Panel Model | M240HTN01.2 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 24.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 531.36×298.89 mm |
| Outline | 556×323.2×12 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Response Time | 3.5/1.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S4PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
| M240HTN01.1 | AUO | 24.0 | 1920×1080 |
| M240HVN01.0 | AUO | 24.0 | 1920×1080 |
| M240HVN02.0 | AUO | 24.0 | 1920×1080 |
| M240HW01 V0 | AUO | 24.0 | 1920×1080 |
| M240HW01 V1 | AUO | 24.0 | 1920×1080 |
| M240HW01 V2 | AUO | 24.0 | 1920×1080 |
| M240HW01 V8 | AUO | 24.0 | 1920×1080 |
| M240HW01 VC | AUO | 24.0 | 1920×1080 |
| M240HW02 V6 | AUO | 24.0 | 1920×1080 |
| M240HW02 V7 | AUO | 24.0 | 1920×1080 |
| HR215WU1-100 | BOE | 21.5 | 1920×1080 |
| HR236WU3-301 | BOE | 23.6 | 1920×1080 |
| LM240WU5-SLA1 | LG Display | 24.0 | 1920×1200 |
| LM270QQ1-SDA2 | LG Display | 27.0 | 5120×2880 |
| LTM170E8-L02 | Samsung | 17.0 | 1280×1024 |
| LTM220CS01 | Samsung | 22.0 | 1920×1200 |
| M170EG01 VH | AUO | 17.0 | 1280×1024 |
| M190PP01 V0 | AUO | 19.0 | 1440×900 |
| M201UN02 V6 | AUO | 20.1 | 1600×1200 |
| M270HW02 V1 | AUO | 27.0 | 1920×1080 |
