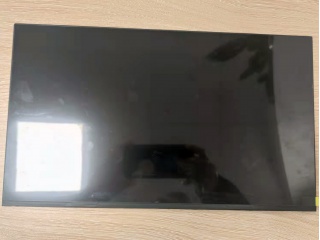

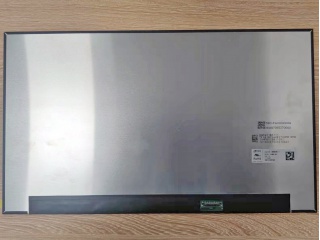

| PartNumber | MNF601BA1-1 |
| Brand | CSOT |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LTPS TFT-LCD , LCM |
| Brightness | |
| CR | 1500:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 15.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Active Area | 344.16(H)×193.59(V) mm |
| Bezel Area | - |
| Luminance | 400 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Support Color | 16.7M 98% sRGB |
| Form Style | Slim (PCBA Bent, T≤3.0mm) |
| Frame Rate | 60Hz |
| Interface Type | eDP (2 Lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |

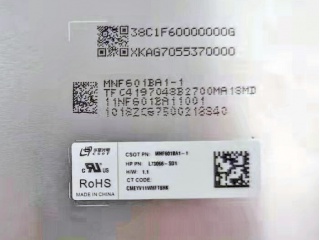

| Model | MNF601BA1-1 (CSO1506) |
| Type | LTPS TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 319.16(H)×204.49(V) ×2.6(D) mm |
| Treatment | Antiglare |
| Contrast Ratio | 1500:1 (Typ.) (TM) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Operating Mode | FFS, Normally Black, Transmissive |
| Light Source | WLED [9S6P] , 15K hours , With LED Driver |
| Designed For | Laptop |
| Touch Panel | Without |
