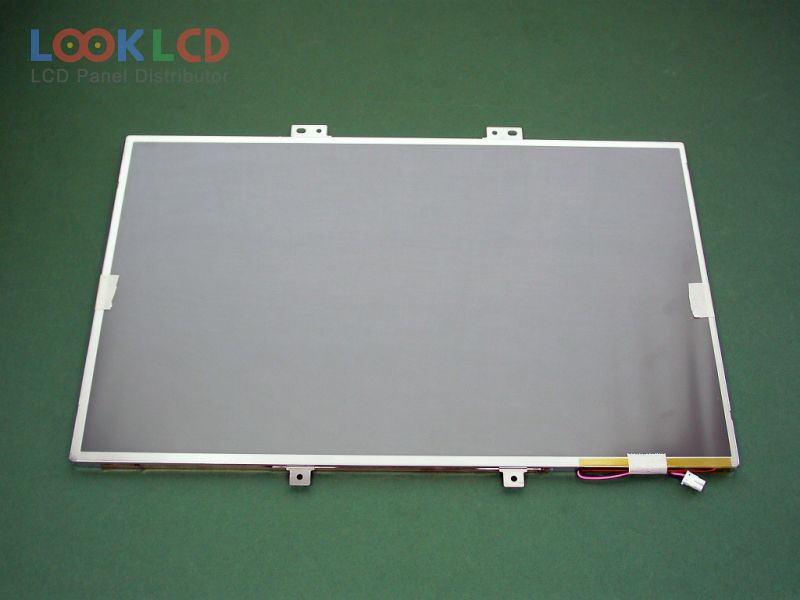

| PartNumber | N154Z1-L02 |
| Brand | Innolux |
| Size | 15.4 |
| Application | NBPC |
| Resolution | 1680(RGB)×1050 , WSXGA+ |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | N154Z1-L02 7 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 331.128×206.955 mm |
| Outline | 344×222×6.5 mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Surface | Glare (Haze 0%), Hard coating (2H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193145% |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 6-bit), 30 pins |
| Input Voltage | 3.3V (Typ.) |
| B154EW03 V1 | AUO | 15.4 | 1280×800 |
| B154EW08 V0 HW2A | AUO | 15.4 | 1280×800 |
| LP154WX4-TLC8 | LG Display | 15.4 | 1280×800 |
| LP154WX5-TLA1 | LG Display | 15.4 | 1280×800 |
| LTN154BT05-D01 | Samsung | 15.4 | 1440×900 |
| LTN154CT02-001 | Samsung | 15.4 | 1920×1200 |
| LTN154P1-L03 | Samsung | 15.4 | 1680×1050 |
| N154Z1-L01 | Innolux | 15.4 | 1680×1050 |
| N154Z1-L02 | Innolux | 15.4 | 1680×1050 |
| N154Z3-L01 | Innolux | 15.4 | 1680×1050 |
| B133EW01 V0 | AUO | 13.3 | 1280×800 |
| LP156WF4-SPB1 | LG Display | 15.6 | 1920×1080 |
| LP156WH2-TLD1 | LG Display | 15.6 | 1366×768 |
| LP156WH4-TPA1 | LG Display | 15.6 | 1366×768 |
| LQ108M1JW01 | SHARP | 10.8 | 1920×1080 |
| LQ133T1JW02 | SHARP | 13.3 | 2560×1440 |
| LTD121KA0S | TOSHIBA | 12.1 | 1024×768 |
| LTN121AP03-002 | Samsung | 12.1 | 1280×800 |
| LTN140AT20-P02 | Samsung | 14.0 | 1366×768 |
| N156B6-L0A | Innolux | 15.6 | 1366×768 |
