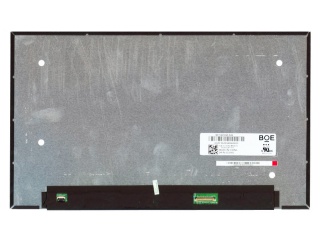

NE140FHM-N44


Brand
BOE
Size
14.0
Application
Laptop
Resolution
1920×1080
Composition
LCM ,   Oxide TFT-LC
Brightness
CR
1500:1
Colors
262K
Backlight
10S6P
Interface
In Stock
19123
Specifications
PartNumber NE140FHM-N44
BrandBOE
Size14.0
ApplicationLaptop
Resolution1920×1080
CompositionLCM ,   Oxide TFT-LC
Brightness
CR1500:1
Colors262K
Backlight10S6P WLED , 15K hours , With LED Driver
Interface
ManufacturerBOE
Screen Size14.0 inch
Pixel Number1920(RGB)×1080   (FHD)  157PPI
Active Area(mm)309.312 × 173.988 (H×V)
Bezel Area(mm)-
Luminance300 (Typ.)(cd/m²)
Viewing Angle85/85/85/85 (Typ.)(CR≥10)
Good View atSymmetry
Color Depth262K   72% NTSC
Outline ShapeSlim (PCBA Bent, T≤3.0mm)
Refresh Rate60Hz
Model NameNE140FHM-N44
Screen TypeLCM ,   Oxide TFT-LCD
ArrangementRGB Vertical Stripe
Outline(mm)315.81 × 186.09 × 5.25 (H×V×D)
TreatmentAntiglare, Hard coating (3H)
Contrast Ratio1500 : 1 (Typ.) (TM)
Work ModeADS, Normally Black, Transmissive
Response35 (Typ.)(Tr+Td) ms
Used forLaptop
TouchscreenWithout
