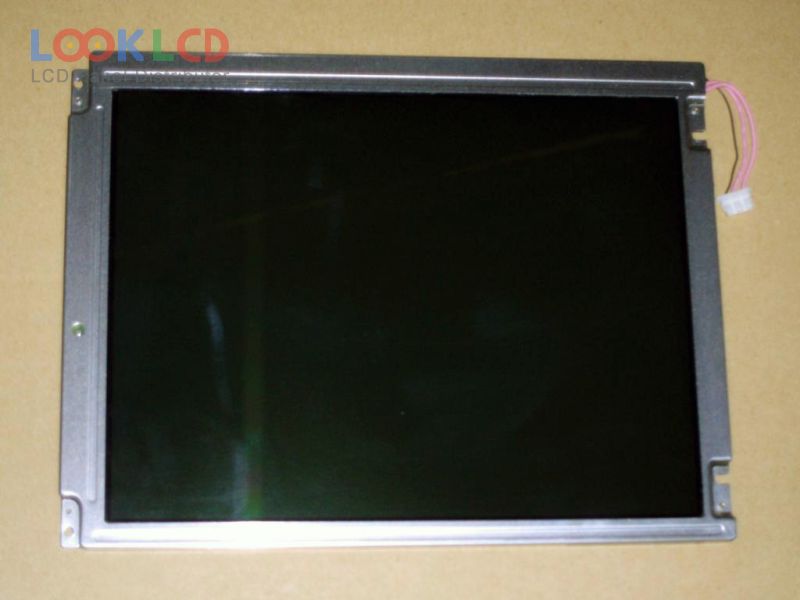

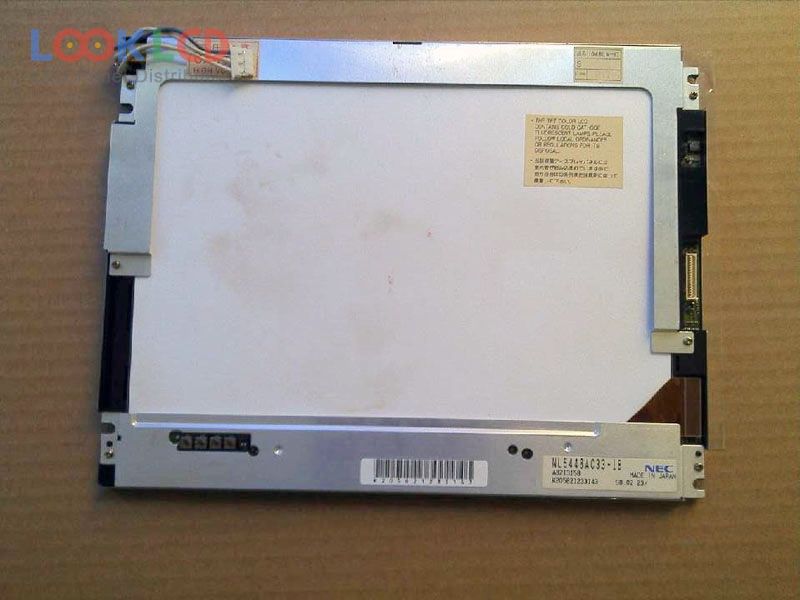

| PartNumber | NL6448AC33-18 |
| Brand | NLT |
| Size | 10.4 |
| Application | IA |
| Resolution | 640(RGB)×480 , VGA |
| Composition | LCM |
| Brightness | 200 cd/m² (Typ.) |
| CR | 150:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | NEC |
| Panel Model | NL6448AC33-18 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 243×185.1×11 mm |
| Surface | Clear, Antireflection |
| Contrast Ratio | 150:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193143% |
| Response Time | 40 (Max.)(Tr) |
| Viewing Angle | 45/45/30/20 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLEmbedded (Inverter) |
| Signal Interface | CMOS (1 ch, 6-bit), 31 pins |
| Input Voltage | 3.3/5.0V (Typ.)(VCC) |
