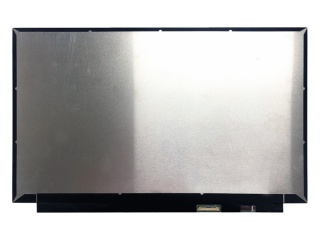

| PartNumber | NV133FHM-N56 |
| Brand | BOE |
| Size | 13.3 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | BOE |
| Model Name | NV133FHM-N56 (BOE0736) |
| Screen Size | 13.3 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 166PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 293.76 × 165.24 (H×V) |
| Outline(mm) | 299.96 × 186.92 × 2.1 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 100% sRGB |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B133EW04 V4 | AUO | 13.3 | 1280×800 |
| B133XW03 V1 | AUO | 13.3 | 1366×768 |
| LP133WH1-TLC1 | LG Display | 13.3 | 1366×768 |
| LP133WX1-TLB1 | LG Display | 13.3 | 1280×800 |
| LT133EE09C00 | TOSHIBA | 13.3 | 1366×768 |
| LTN133AT09-G02 | Samsung | 13.3 | 1280×800 |
| N133HSE-EB1 | Innolux | 13.3 | 1920×1080 |
| NV133FHM-N43 | BOE | 13.3 | 1920×1080 |
| NV133FHM-N52 | BOE | 13.3 | 1920×1080 |
| TM133XG-A01-03 | SANYO | 13.3 | 1024×768 |
