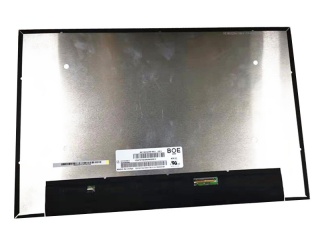

| PartNumber | NV156FHM-N4J |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop Gaming |
| Resolution | 1920×1080 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 1300:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | eDP |
| Diagonal Size | 15.6 inch |
| Pixel Format | 1920(RGB)×1080 [FHD] 141PPI |
| Active Area | 344.16(H)×193.59(V) mm |
| Bezel Area | - |
| Luminance | 500 cd/m² (Typ.) |
| View Direction | Symmetry |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Support Color | 1.07B 71% NTSC |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Frame Rate | 144Hz |
| Interface Type | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
| Model | NV156FHM-N4J (BOE083B) |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 350.66(H)×215.25(V) ×2.6(D) mm |
| Treatment | Antiglare (Haze 25%) |
| Contrast Ratio | 1300:1 (Typ.) (TM) |
| Response Time | 7.5 (Typ.)(G to G) |
| Operating Mode | HADS, Normally Black, Transmissive |
| Light Source | WLED , 15K hours , With LED Driver |
| Designed For | Laptop Gaming |
| Touch Panel | Without |
