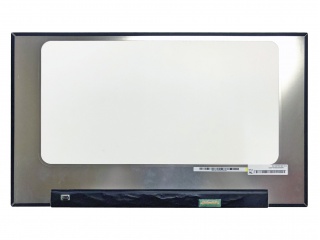

| PartNumber | NV156FHM-N63 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | 11S4P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | BOE |
| Model Name | NV156FHM-N63 (BOE07D8) 4 Compatible |
| Screen Size | 15.6 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.46 × 206.25 × 4.6 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare |
| Luminance | 300 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | HADS, Normally Black, Transmissive |
| Color Depth | 262K 72% NTSC |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
| B156HB01 V0 | AUO | 15.6 | 1920×1080 |
| B156HW01 V1 | AUO | 15.6 | 1920×1080 |
| B156XTN02.0 | AUO | 15.6 | 1366×768 |
| LM156WH1-TLE1 | LG Display | 15.6 | 1366×768 |
| LTN156AT02-W01 | Samsung | 15.6 | 1366×768 |
| LTN156KT01-001 | Samsung | 15.6 | 1600×900 |
| LTN156KT01-W01 | Samsung | 15.6 | 1600×900 |
| NV156FHM-N41 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N42 | BOE | 15.6 | 1920×1080 |
| NV156FHM-N43 | BOE | 15.6 | 1920×1080 |
