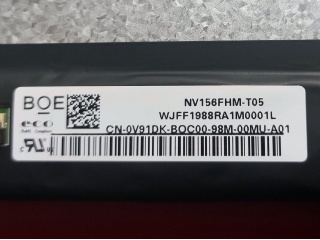

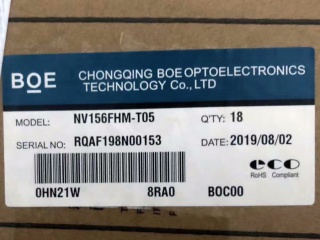

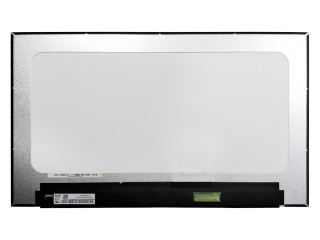

| PartNumber | NV156FHM-T05 |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | 262K |
| Backlight | 10S4P WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | BOE |
| Model Name | NV156FHM-T05 (BOE07F2) |
| Screen Size | 15.6 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 205.69 × 5.4 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 262K 45% NTSC |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | On-Cell Touch |
| Signal Type | eDP (2 Lanes) , eDP1.2 , HBR1 (2.7G/lane) , Connector 40 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
