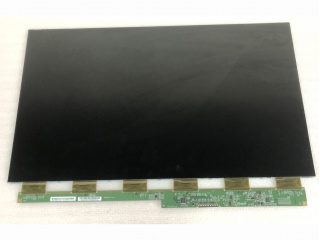

| PartNumber | PN238CT01-2 |
| Brand | HKC |
| Size | 23.8 |
| Application | Desktop Monitor |
| Resolution | 1920(RGB)×1080, FHD, 92PPI |
| Composition | a-Si TFT-LCD, CELL |
| Brightness | 0 cd/m² |
| CR | 3000:1 |
| Colors | 16.7M |
| Backlight | No |
| Interface | LVDS |
| Panel Brand | HKC |
| Panel Model | PN238CT01-2 |
| Panel Size | 23.8" |
| Panel Type | a-Si TFT-LCD, CELL |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 527.04(W)×296.46(H) mm |
| Bezel Opening | - |
| Outline Size | 534.04(W)×307.76(H) ×1.37(D) mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 3000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | FSA, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 9.5 (Typ.)(G to G) |
| Glass Depth | 0.50+0.50 mm |
| Transmissivity | 5.0% (Typ.)(with Polarizer) |
| Display Colors | 16.7M 72% NTSC |
| Lamp Type | No B/L |
| Frequency | 60Hz |
| Touch Screen | Without |
| Driver IC | COF Built-in 6 source chips |
| Panel Weight | 519g (Typ.) |
| Signal Interface | LVDS (2 ch, 8-bit) , 30 pins Connector |
| Input Voltage | 5.0V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| G238HAN01.0 | AUO | 23.8 | 1920×1080 |
| LM238WF1-SLE1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSF1 | LG Display | 23.8 | 1920×1080 |
| LM238WF2-SSK1 | LG Display | 23.8 | 1920×1080 |
| LM238WF4-SSA1 | LG Display | 23.8 | 1920×1080 |
| LM238WR1-SLA1 | LG Display | 23.8 | 3840×2160 |
| M238DAN01.1 Q0 | AUO | 23.8 | 2560×1440 |
| M238HVN01.0 | AUO | 23.8 | 1920×1080 |
| MV238FHM-N10 | BOE | 23.8 | 1920×1080 |
| MV238QUM-N20 | BOE | 23.8 | 3840×2160 |
