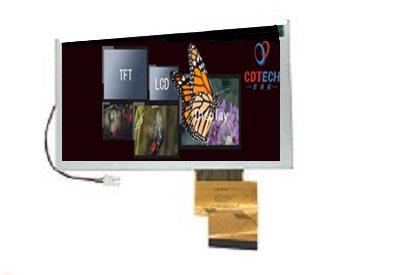

| PartNumber | S062WV04 |
| Brand | CDTECH |
| Size | 6.2 |
| Application | Industrial Automotiv |
| Resolution | 800×480 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | 3S9P WLED , 25K hours , No Driver |
| Interface | |
| Manufacturer | CDTECH |
| Screen Size | 6.2 inch |
| Pixel Number | 800(RGB)×480 (WVGA) 150PPI |
| Active Area(mm) | 137.52 × 77.232 (H×V) |
| Bezel Area(mm) | 140.7 × 80.4 (H×V) |
| Luminance | 600 (Typ.)(cd/m²) |
| Viewing Angle | 65/65/55/65 (Typ.)(CR≥10) |
| Good View at | - |
| Color Depth | 16.7M |
| Mass | TBD |
| Refresh Rate | 60Hz |
| Model Name | S062WV04 |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 155.2 × 88.2 × 3.7 (H×V×D) |
| Treatment | - |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Work Mode | TN, Normally White, Transmissive |
| Response | 30/30 (Typ.)(Tr/Td) ms |
| Used for | Industrial Automotive Display |
| Touchscreen | Without |
