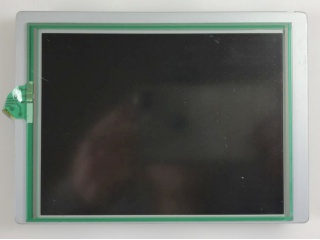

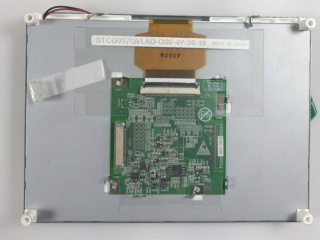

| PartNumber | STCG057QVLAD-G00 |
| Brand | Kyocera |
| Size | 5.7 |
| Application | Industrial |
| Resolution | 320×240 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | Parallel |
| Manufacturer | Kyocera |
| Model Name | STCG057QVLAD-G00 |
| Screen Size | 5.7 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 320(RGB)×240 (QVGA) 70PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm) | - |
| Bezel Area(mm) | - |
| Treatment | Glare (Haze 0%) |
| Luminance | - |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥5) |
| Response | 10/25 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | 4-wire Resistive Touch |
| Signal Type | Parallel RGB (1 ch, 6-bit) |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
