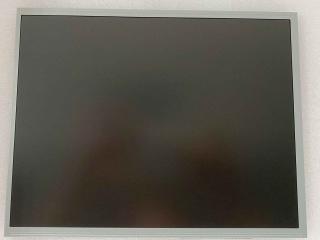

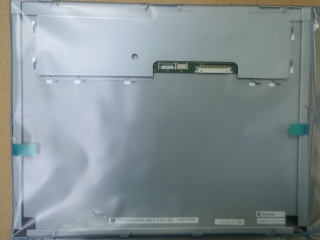

| PartNumber | TCG121XGLPAPNN-AN20-S |
| Brand | Kyocera |
| Size | 12.1 |
| Application | Industrial |
| Resolution | 1024×768 |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | |
| CR | 750:1 |
| Colors | 262K/16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Model | TCG121XGLPAPNN-AN20-S |
| Diagonal Size | 12.1 inch |
| Type | a-Si TFT-LCD, LCM |
| Pixel Format | 1024(RGB)×768 [XGA] 105PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 245.76(H)×184.32(V) mm |
| Outline Dim. | 260.5(H)×203.4(V) ×10.8(D) mm |
| Bezel Area | 249.0(H)×187.5(V) mm |
| Treatment | Antiglare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 750:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | AWV, Normally Black, Transmissive |
| Support Color | 262K/16.2M 50% NTSC |
| Light Source | WLED , 50K hours , With LED Driver |
| Weight | 670g |
| Designed For | Industrial |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: -30 ~ 80 °C ; Storage Temperature: -30 ~ 80 °C |
