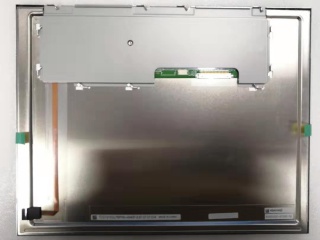

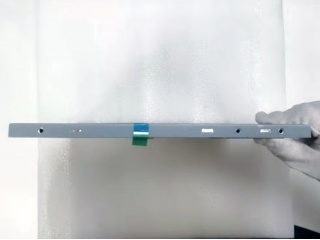

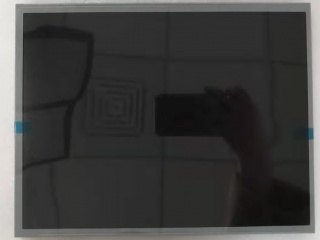

| PartNumber | TCG121XGLPBPNN-AN40-S |
| Brand | Kyocera |
| Size | 12.1 |
| Application | Industrial Outdoor High Brightness |
| Resolution | 1024(RGB)×768, XGA, 105PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 780 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 262K/16.2M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | Kyocera |
| Panel Model | TCG121XGLPBPNN-AN40-S |
| Panel Size | 12.1" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 245.76(W)×184.32(H) mm |
| Bezel Opening | 249.0(W)×187.5(H) mm |
| Outline Size | 260.5(W)×203(H) ×10.9(D) mm |
| Surface | Antiglare |
| Contrast Ratio | 600:1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Display Mode | AWV, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 18/12 (Typ.)(Tr/Td) |
| Display Colors | 262K/16.2M 51% NTSC |
| Lamp Type | WLED , 50K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Panel Weight | 555g |
| Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: -30 ~ 80 °C ; Storage Temp.: -30 ~ 80 °C |
| AA121SJ23 | Mitsubishi | 12.1 | 800×600 |
| B121EW09 V4 | AUO | 12.1 | 1280×800 |
| HV121WX5-113 | HYDIS | 12.1 | 1280×800 |
| LQ121S1DC71 | SHARP | 12.1 | 800×600 |
| LQ121X1LH73 | SHARP | 12.1 | 1024×768 |
| LTD121C32S | TOSHIBA | 12.1 | 800×600 |
| LTD121EA3P | TOSHIBA | 12.1 | 1024×768 |
| LTD121EXPD | TOSHIBA | 12.1 | 1280×800 |
| NL10276BC24-19D | NLT | 12.1 | 1024×768 |
| TCG121XGLPAPNN-AN20 | Kyocera | 12.1 | 1024×768 |
