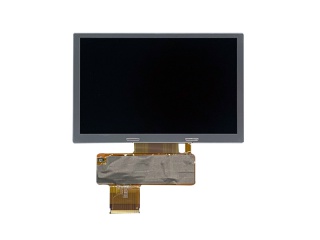

| PartNumber | TM050RDZG03-30 |
| Brand | TIANMA |
| Size | 5.0 |
| Application | Industrial |
| Resolution | 800×480 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 600:1 |
| Colors | 16.7M |
| Backlight | 3S6P WLED , 50K hours |
| Interface | |
| Manufacturer | TIANMA |
| Model Name | TM050RDZG03-30 |
| Screen Size | 5.0 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 800(RGB)×480 (WVGA) 188PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 108 × 64.8 (H×V) |
| Outline(mm) | 120.7 × 77.8 × 5.9 (H×V×D) |
| Bezel Area(mm) | 111.1 × 67.9 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
| Response | 20/30 (Typ./Max.)(Tr+Td) ms |
| Good View at | 12 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 50% NTSC |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Storage Temp.: -40 ~ 90 °C Operating Temp.: -30 ~ 85 °C |
