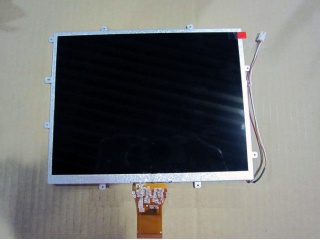

| PartNumber | TM097TDH01-00 |
| Brand | AVIC |
| Size | 9.7 |
| Application | Industrial |
| Resolution | 1024×768 |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Diagonal Size | 9.7 inch |
| Pixel Format | 1024(RGB)×768 [XGA] 132PPI |
| Active Area | 196.608(H)×147.456(V) mm |
| Bezel Area | 200.91(H)×152.26(V) mm |
| Luminance | 220 cd/m² (Typ.) |
| View Direction | 3 o'clock |
| Viewing Angle | 70/60/70/70 (Typ.)(CR≥10) |
| Support Color | 262K/16.7M 50% NTSC |
| Weight | 256g |
| Frame Rate | 60Hz |
| Model | TM097TDH01-00 |
| Type | a-Si TFT-LCD , LCM |
| Configuration | RGB Vertical Stripe |
| Outline Dim. | 210.2(H)×166.2(V) ×3.96(D) mm |
| Treatment | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Response Time | 20 (Typ.)(Tr+Td) |
| Operating Mode | TN, Normally White, Transmissive |
| Light Source | WLED [6S6P] , 15K hours , W/O Driver |
| Designed For | Industrial |
| Touch Panel | Without |
