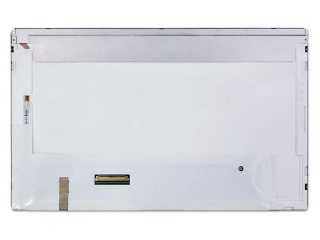

| PartNumber | TM101DDHG01-60 |
| Brand | TIANMA |
| Size | 10.1 |
| Application | Industrial Automotive Display |
| Resolution | 1024(RGB)×600, WSVGA, 117PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | 450 cd/m² (Typ.) |
| CR | 800:1 |
| Colors | 262K/16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | TIANMA |
| Panel Size | 10.1" |
| Display Area | 222.72(W)×125.28(H) mm |
| Outline Size | 235(W)×143(H) ×5.4(D) mm |
| Viewing Angle | 80/80/75/80 (Typ.)(CR≥10) |
| Best View on | 12 o'clock |
| Display Colors | 262K/16.7M 47% NTSC |
| Frequency | 60Hz |
| Weight | 202g (Typ.) |
| Panel Model | TM101DDHG01-60 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | 225.52(W)×128.10(H) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 800:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 7/9 (Typ.)(Tr/Td) |
| Lamp Type | WLED , 30K hours , With LED Driver |
| Touch Screen | Without |
| A101AIE40L0 | Aptus | 10.1 | 1280×720 |
| AM-1280800N2TZQW-00H | AMPIRE | 10.1 | 1280×800 |
| CLAA101WB03 | CPT | 10.1 | 1366×768 |
| LTL101AL06-W02 | Samsung | 10.1 | 1280×800 |
| PJ101IA-01A | Innolux | 10.1 | 1280×800 |
| Q101IRE-LA1 | Innolux | 10.1 | 1280×800 |
| TM101DDHG01 | Tianma | 10.1 | 1024×600 |
| TM101DDHG03 | Tianma | 10.1 | 1024×600 |
| TV101WUM-NH0 | BOE | 10.1 | 1200×1920 |
| TV101WXM-NP0 | BOE | 10.1 | 1280×800 |
