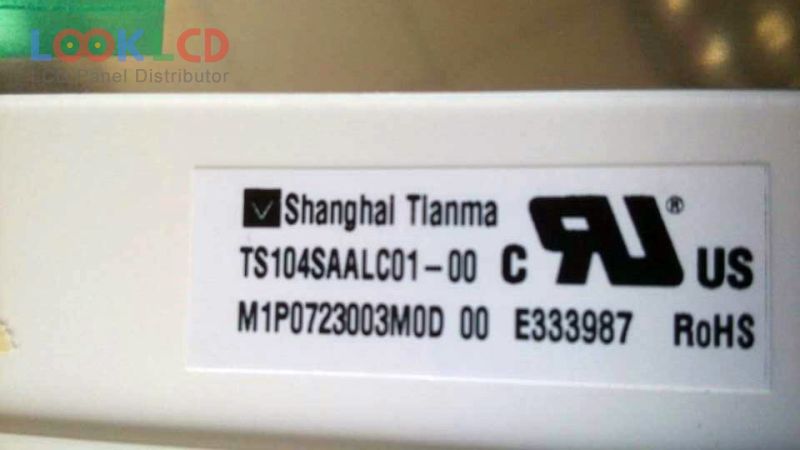

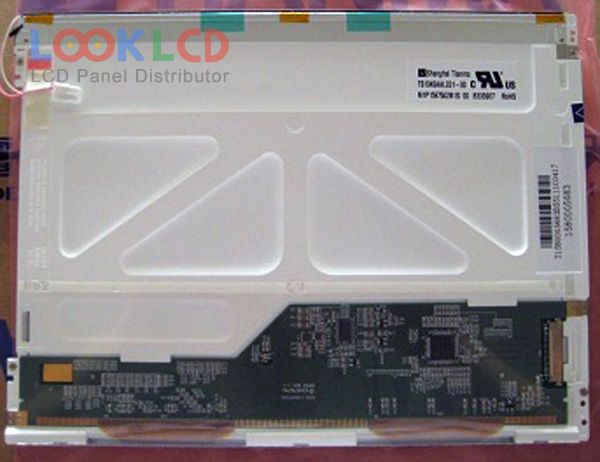

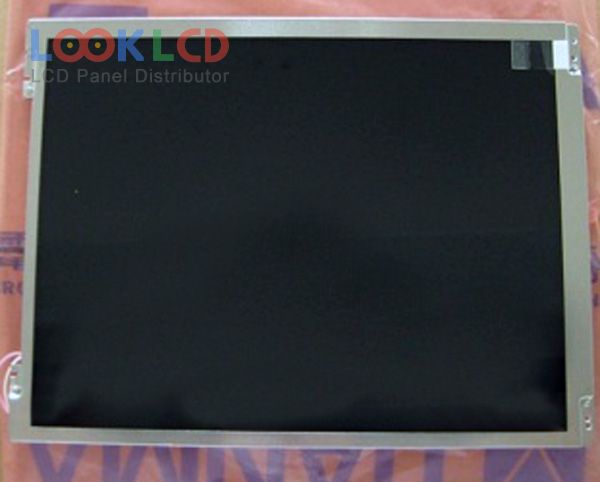

| PartNumber | TS104SAALC01-00 |
| Brand | Tianma |
| Size | 10.4 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 230 cd/m² (Typ.) |
| CR | 400:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | TIANMA |
| Panel Model | TS104SAALC01-00 1 Compatible model |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.4 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 211.2×158.4 mm |
| Outline | 236×176.9×5.9 mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 400:1 (Typ.) |
| Display Colors | 262K (6-bit), CIE193150% |
| Response Time | 10 (Typ.)(TTr+Td) |
| Viewing Angle | 70/70/60/70 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 1 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 6-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
