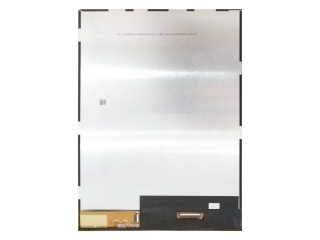

| PartNumber | TV097QXM-NU0 |
| Brand | BOE |
| Size | 9.7 |
| Application | Pad & Tablet |
| Resolution | 1536×2048 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | 6S6P WLED , No Driver |
| Interface | MIPI |
| Manufacturer | BOE |
| Model Name | TV097QXM-NU0 |
| Screen Size | 9.7 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1536(RGB)×2048 (QXGA) 264PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 147.456 × 196.608 (H×V) |
| Outline(mm) | 152.536 × 206.548 × 3.2 (H×V×D) |
| Luminance | 460 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Min.)(CR≥10) |
| Response | 30 (Max.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Mass | 110g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (2 ch, 4 data lanes) , Connector 61 pins |
| Voltage Supply | 1.8/5.5/-5.5V (Typ.)(VCC/AVDD/AVEE) |
| Max. Ratings | Storage Temp.: -30 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
