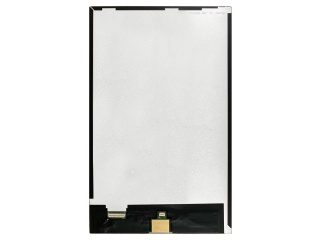

| PartNumber | TV101WUM-NM1 |
| Brand | BOE |
| Size | 10.1 |
| Application | Pad & Tablet |
| Resolution | 1200×1920 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | 8S4P WLED , 30K hours , No Driver |
| Interface | MIPI |
| Manufacturer | BOE |
| Model Name | TV101WUM-NM1 |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1200(RGB)×1920 (WUXGA) 225PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 135.36 × 216.576 (H×V) |
| Outline(mm) | 143 × 227.926 × 4.4 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating, Antireflection |
| Luminance | - |
| Contrast Ratio | 900 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Response | 30 (Typ.)(Tr+Td) ms |
| Good View at | Symmetry |
| Work Mode | ADS, Normally Black, Transmissive |
| Color Depth | 16.7M |
| Mass | 145g (Max.) |
| Used for | Pad & Tablet |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | MIPI (4 data lanes) Connector |
| Voltage Supply | 3.3V (Typ.)(VDD) |
| Max. Ratings | Storage Temp.: -20 ~ 70 °C Operating Temp.: -10 ~ 60 °C |
