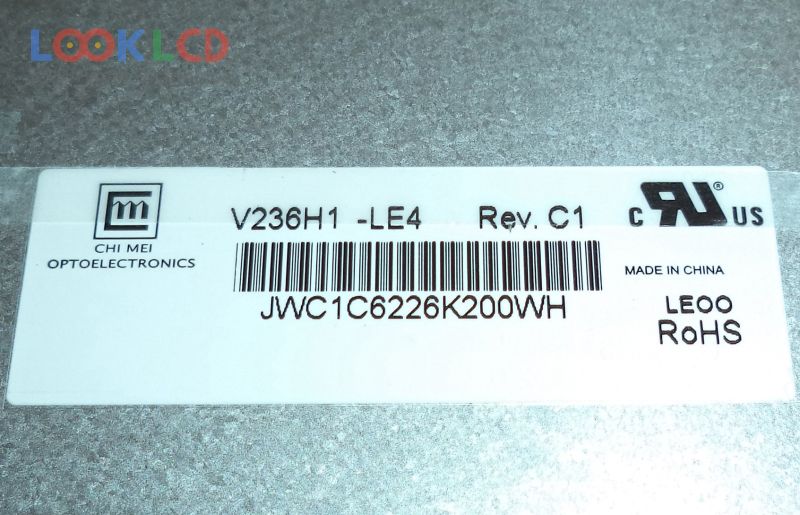

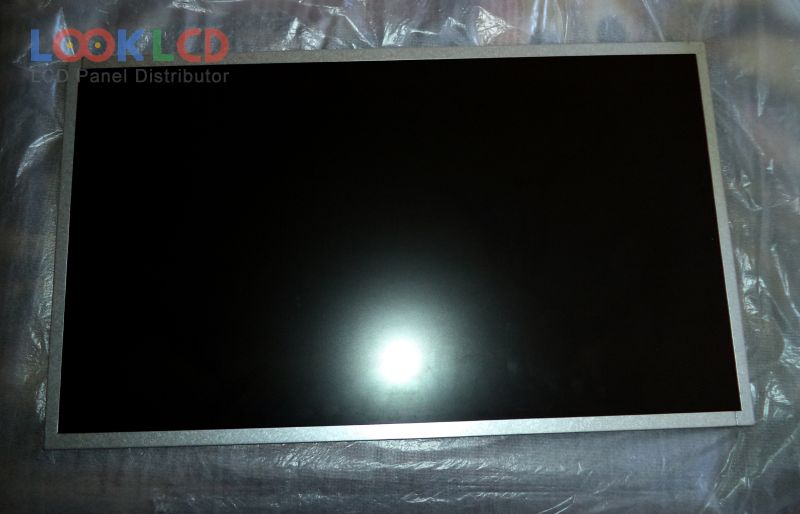

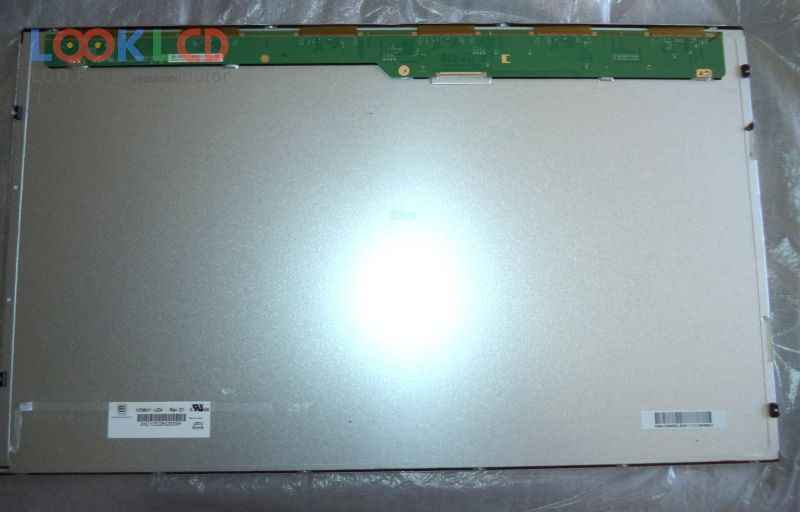

| PartNumber | V236H1-LE4 |
| Brand | Innolux |
| Size | 23.6 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 280 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | CHIMEI INNOLUX |
| Panel Model | V236H1-LE4 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 23.6 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 521.28×293.22 mm |
| Outline | 544.8×320.5 mm |
| Surface | Antiglare (Haze 25%) |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC), CIE193172% |
| Response Time | 1.5/3.5 (Typ.)(Tr/Td) |
| Viewing Angle | 85/85/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 9S8PWLEDWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
