| PartNumber | VVX10T022N00 |
| Brand | Panasonic |
| Size | 10.1 |
| Application | PAD |
| Resolution | 2560(RGB)×1600 , WQXGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Panasonic |
| Panel Model | VVX10T022N00 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 10.1 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 216.96×135.6 mm |
| Outline | 227.65×147.85×4.37 mm |
| Surface | Hard coating |
| Contrast Ratio | 1000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 30 (Max.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Min.)(CR≥100)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 7S6PWLEDWithout Driver |

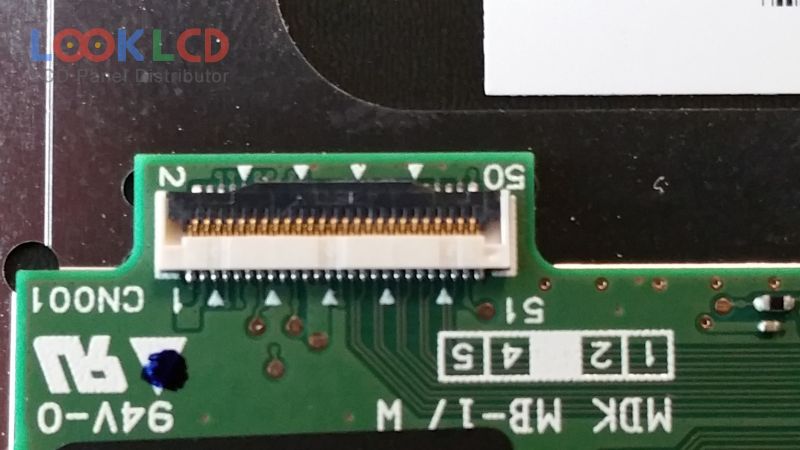

| Signal Interface | eDP (4 Lanes), 51 pins |
| Input Voltage | 3.7V (Typ.) |
