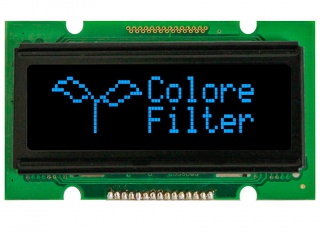

| PartNumber | WEG007616AB |
| Brand | Winstar |
| Size | 1.7 |
| Application | Instruments & Me |
| Resolution | 76×16 |
| Composition | PM-OLED, OLED |
| Brightness | |
| CR | |
| Colors | Mono(Blue) |
| Backlight | self |
| Interface | CPU/SPI |
| Model | WEG007616AB |
| Diagonal Size | 1.7 inch |
| Type | PM-OLED, OLED |
| Pixel Format | 76×16 45PPI |
| Configuration | Rectangle |
| Active Area | 41.7(H)×11.1(V) mm |
| Outline Dim. | 55.7(H)×32(V) ×11(D) mm |
| Bezel Area | 46(H)×14.5(V) mm |
| Treatment | - |
| View Direction | Symmetry |
| Response Time | - |
| Viewing Angle | - |
| Operating Mode | - |
| Support Color | Mono(Blue) |
| Light Source | self |
| Weight | - |
| Designed For | Instruments & Meters |
| Frame Rate | - |
| Touch Panel | Without |
| D-IC Detail | COB Built-in WS0010 |
| Interface Type | CPU/SPI , 15 pins Pad |
| Power Supply | 5.0V (Typ.) |
