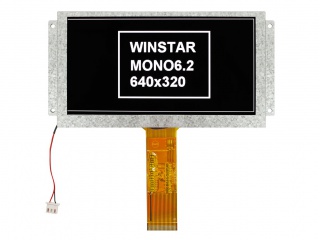

| PartNumber | WF62ATXGRDNN0 |
| Brand | Winstar |
| Size | 6.2 |
| Application | Industrial |
| Resolution | 640×320 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 800:1 |
| Colors | Grayscale |
| Backlight | WLED , No Driver |
| Interface | 8-bit |
| Manufacturer | Winstar |
| Model Name | WF62ATXGRDNN0 |
| Screen Size | 6.2 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 640×320 116PPI |
| Arrangement | Rectangle |
| Active Area(mm) | 140 × 70 (H×V) |
| Outline(mm) | 170.32 × 83.3 × 5.6 (H×V×D) |
| Bezel Area(mm) | 141.6 × 73.4 (H×V) |
| Treatment | Glare (Haze 0%) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | - |
| Response | - |
| Good View at | Symmetry |
| Work Mode | VA, Normally Black, Transmissive |
| Color Depth | Grayscale |
| Mass | - |
| Used for | Industrial |
| Refresh Rate | - |
| Touchscreen | Without |
| Signal Type | 8-bit 6800/8080 parallel, 3/4-wire SPI , 22 pins FPC |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
