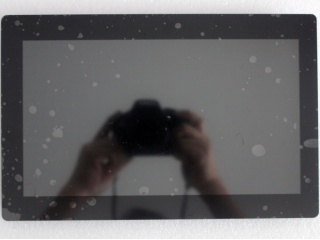

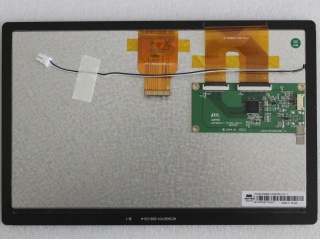

| PartNumber | AM-1024600ITZQW-T00H |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1024×600 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K/16.7M |
| Backlight | WLED , 50K hours , No Driver |
| Interface | LVDS |
| Manufacturer | AMPIRE |
| Screen Size | 10.1 inch |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Bezel Area(mm) | - |
| Luminance | 465 cd/m² (Typ.) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Good View at | Symmetry |
| Color Depth | 262K/16.7M 70% NTSC |
| Mass | - |
| Refresh Rate | 60Hz |
| Signal Type | LVDS (1 ch, 6/8-bit) , 40 pins Connector |
| Voltage Supply | 3.3/12.5/20/-10V (Typ.)(VDD/AVDD/VGH/VGL) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
| Model Name | AM-1024600ITZQW-T00H |
| Screen Type | LCM , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Outline(mm) | 255 × 165.8 (H×V×D) |
| Treatment | Antiglare, Hard coating |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Response | 12/28 (Typ.)(Tr/Td) ms |
| Work Mode | IPS, Normally Black, Transmissive |
| Used for | Industrial |
| Touchscreen | PCAP |
