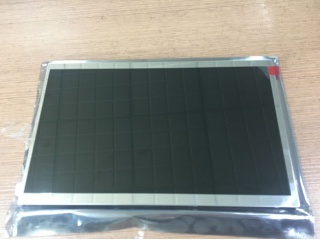

| PartNumber | AM-1024600LHMQW-16H |
| Brand | AMPIRE |
| Size | 10.1 |
| Application | Industrial |
| Resolution | 1024×600 |
| Composition | LCM , a-Si TFT-LCD |
| Brightness | |
| CR | 500:1 |
| Colors | 262K |
| Backlight | 6S6P WLED , 20K hours , With LED Driver |
| Interface | LVDS |
| Manufacturer | AMPIRE |
| Model Name | AM-1024600LHMQW-16H |
| Screen Size | 10.1 inch |
| Screen Type | LCM , a-Si TFT-LCD |
| Pixel Number | 1024(RGB)×600 (WSVGA) 117PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 222.72 × 125.28 (H×V) |
| Outline(mm) | 235 × 145.8 × 7.3 (H×V×D) |
| Bezel Area(mm) | 225.92 × 128.48 (H×V) |
| Treatment | Antiglare |
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/70/50 (Typ.)(CR≥10) |
| Response | 4/12 (Typ.)(Tr/Td) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 47% NTSC |
| Mass | TBD |
| Used for | Industrial |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | LVDS (1 ch, 6-bit) , 30 pins Connector |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -30 ~ 80 °C Operating Temp.: -20 ~ 70 °C |
