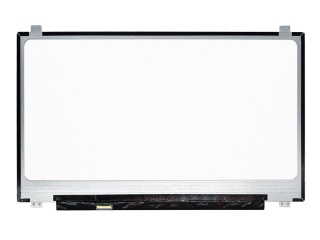

| PartNumber | B173QTN01.4 |
| Brand | AUO |
| Size | 17.3 |
| Application | Laptop |
| Resolution | 2560×1440 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | |
| Manufacturer | AUO |
| Model Name | B173QTN01.4 (AUO1496) |
| Screen Size | 17.3 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 2560(RGB)×1440 (Quad-HD) 170PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 382.08 × 214.92 (H×V) |
| Outline(mm) | 398.1 × 252.5 × 4.35 (H×V×D) |
| Bezel Area(mm) | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 700 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/60/60 (Typ.)(CR≥10) |
| Response | 5 (Typ.)(Tr+Tf) ms |
| Good View at | - |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 16.7M 72% NTSC |
| Outline Shape | Flat (PCBA Flat, T3.4~4.0mm) |
| Used for | Laptop |
| Refresh Rate | 120Hz |
| Touchscreen | Without |
| Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
