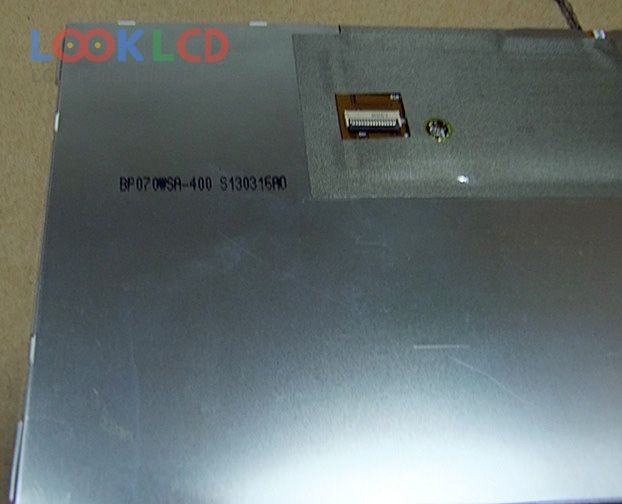

| PartNumber | BP070WSA-400 |
| Brand | BOE |
| Size | 7.0 |
| Application | PAD |
| Resolution | 1024(RGB)×600 , WSVGA |
| Composition | LCM |
| Brightness | |
| CR | 900:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | |
| Panel Brand | BOE |
| Panel Model | BP070WSA-400 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 7.0 inch |
| Display Mode | ADS, Normally Black, Transmissive |
| Active Area | 153.6×90 mm |
| Surface | Hard coating (3H), Antireflection |
| Contrast Ratio | 900:1 (Typ.) |
| Display Colors | 16.7M (6-bit + Hi-FRC) |
| Response Time | 30 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | WLEDEmbedded (LED Driver) |
