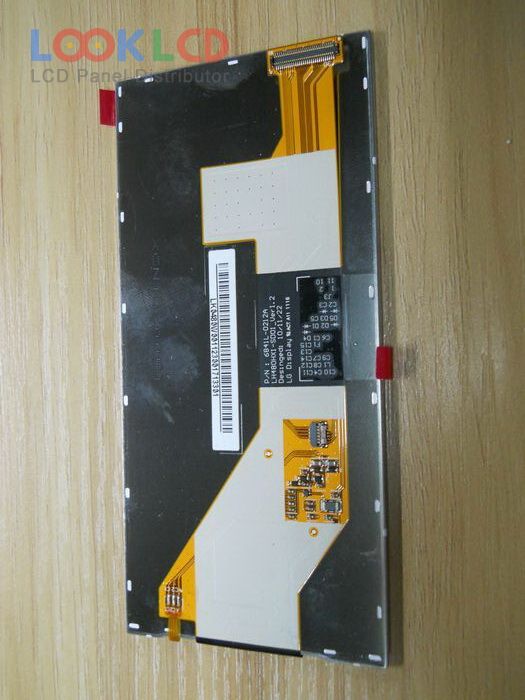

| PartNumber | LH480HX1-SD01 |
| Brand | LG Display |
| Size | 4.8 |
| Application | MPH |
| Resolution | 480(RGB)×1024 |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.2M |
| Backlight | WLED |
| Interface | TTL |
| Panel Brand | LG Display |
| Panel Model | LH480HX1-SD01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 4.8 inch |
| Display Mode | IPS, Normally Black, Transmissive |
| Active Area | 51.84×110.592 mm |
| Outline | 57.64×121.45 mm |
| Surface | |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.2M (6-bit + Dithering), CIE193168% |
| Response Time | 35 (Typ.)(Tr+Td) |
| Viewing Angle | 80/80/80/80 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 5S2PWLEDWithout Driver |
| Signal Interface | Parallel RGB (1 ch, 8-bit) + SPI, 60 pins |
| Input Voltage | 1.8/2.8V (Typ.)(IOVCC/VCC) |
