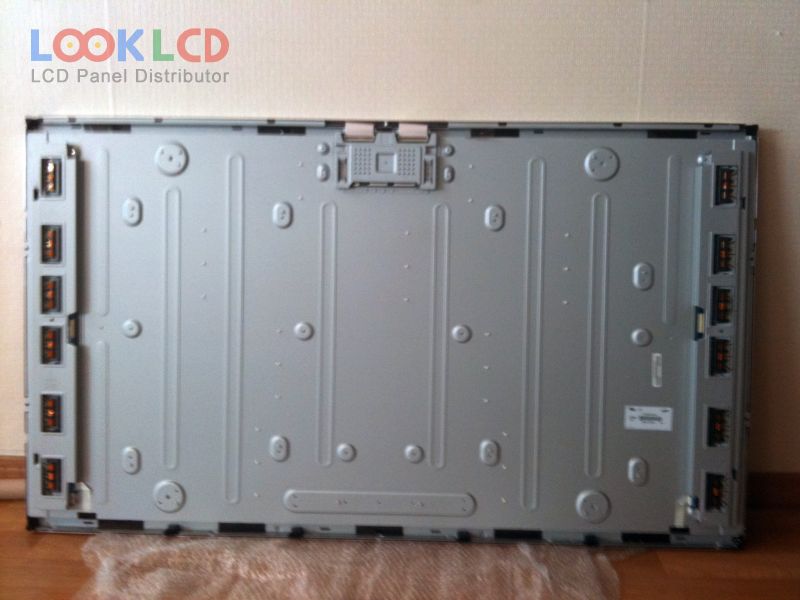

| PartNumber | LTA550HF02 |
| Brand | Samsung |
| Size | 55 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 500 cd/m² (Typ.) |
| CR | 5000:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA550HF02 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 55 inch |
| Display Mode | S-PVA, Normally Black, Transmissive |
| Active Area | 1209.6×680.4 mm |
| Outline | 1267.6×744.4 mm |
| Surface | Antiglare |
| Contrast Ratio | 5000:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 10/6 (Typ.)(Tr/Td); 6 (Typ.)(G to G) |
| Viewing Angle | 90/90/90/90 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 120Hz |
| Lamp Type | 22 pcsCCFLEmbedded (Inverter) |
| Signal Interface | LVDS (4 ch, 8-bit), 92 pins |
| Input Voltage | 12.0V (Typ.) |
