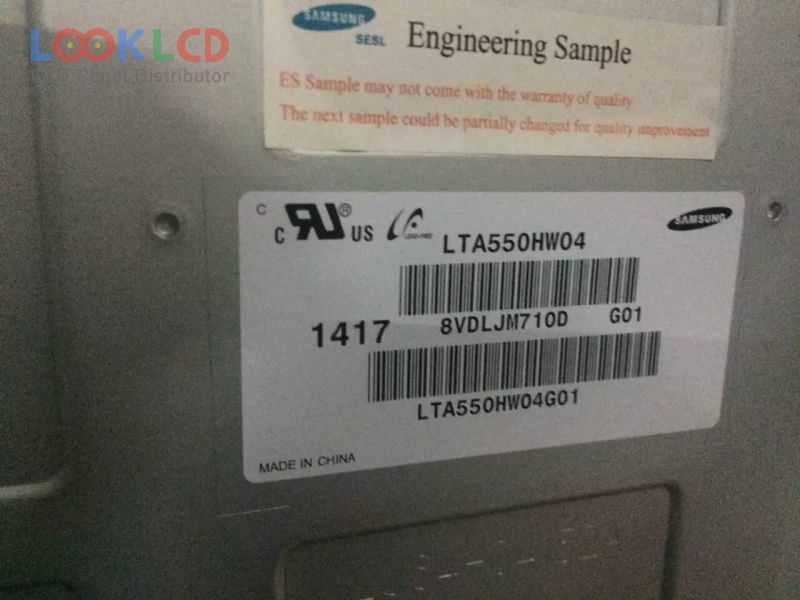

| PartNumber | LTA550HW04 |
| Brand | Samsung |
| Size | 55 |
| Application | LCTV |
| Resolution | 1920(RGB)×1080 , FHD |
| Composition | LCM |
| Brightness | 350 cd/m² (Typ.) |
| CR | 4000:1 |
| Colors | 1.07B |
| Backlight | WLED |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTA550HW04 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 55 inch |
| Display Mode | SVA, Normally Black, Transmissive |
| Active Area | 1209.6×680.4 mm |
| Outline | 1229.4×704.2 mm |
| Surface | Antiglare |
| Contrast Ratio | 4000:1 (Typ.) |
| Display Colors | 1.07B (8-bit + Dithering), CIE193170% |
| Response Time | 6 (Typ.)(G to G) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 120Hz |
| Lamp Type | 2 stringsWLEDWithout Driver |
| Signal Interface | LVDS (4 ch, 10-bit), 92 pins |
| Input Voltage | 12.0V (Typ.) |
