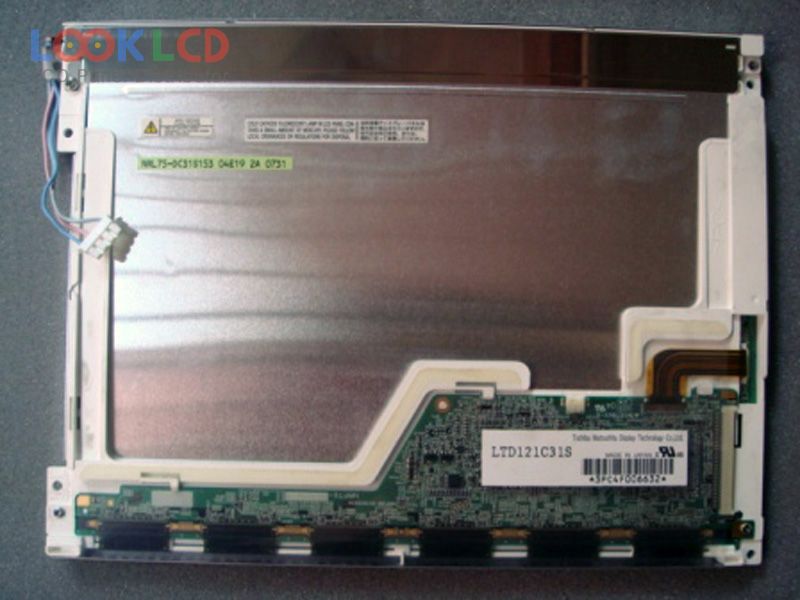

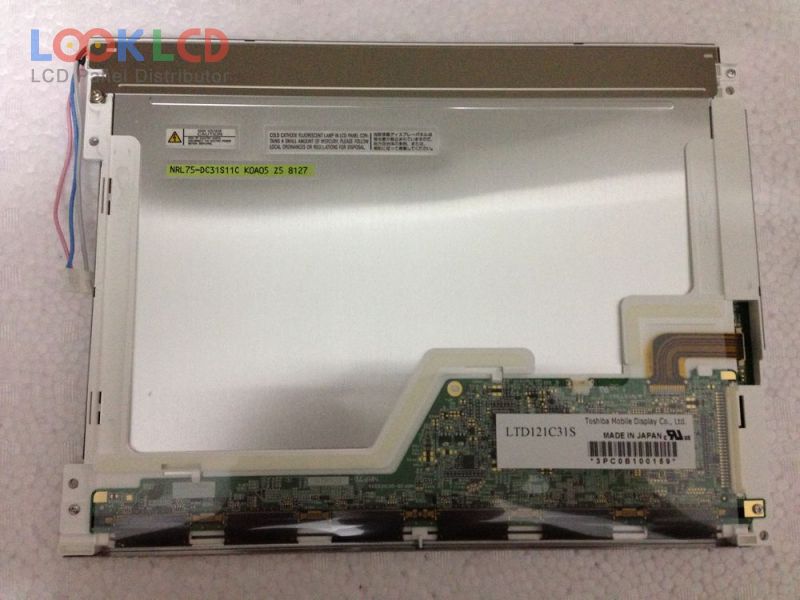

| PartNumber | LTD121C31S |
| Brand | TOSHIBA |
| Size | 12.1 |
| Application | IA |
| Resolution | 800(RGB)×600 , SVGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 450:1 |
| Colors | 262K |
| Backlight | CCFL |
| Interface | TTL |
| Panel Brand | Toshiba Matsushita |
| Panel Model | LTD121C31S |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 12.1 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 246×184.5 mm |
| Outline | 278.3×209×11 mm |
| Surface | |
| Contrast Ratio | 450:1 (Typ.) |
| Display Colors | 262K (6-bit) |
| Response Time | 10/25 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/50/50 (Typ.)(CR≥10)(L/R/U/D) |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | CMOS (1 ch, 6-bit), 32 pins |
| Input Voltage | 3.3V (Typ.)(VDD) |
