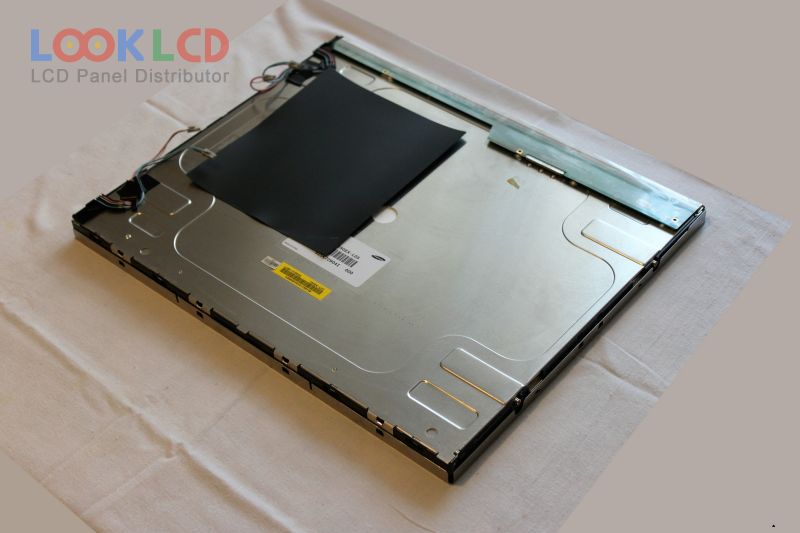

| PartNumber | LTM190EX-L05 |
| Brand | Samsung |
| Size | 19.0 |
| Application | DMPC |
| Resolution | 1280(RGB)×1024 , SXGA |
| Composition | LCM |
| Brightness | 400 cd/m² (Typ.) |
| CR | 700:1 |
| Colors | 16.7M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | SAMSUNG |
| Panel Model | LTM190EX-L05 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 19.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 376.32×301.056 mm |
| Outline | 396×324×17 mm |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Contrast Ratio | 700:1 (Typ.) |
| Display Colors | 16.7M (8-bit), CIE193172% |
| Response Time | 1.7/6.3 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/75/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |

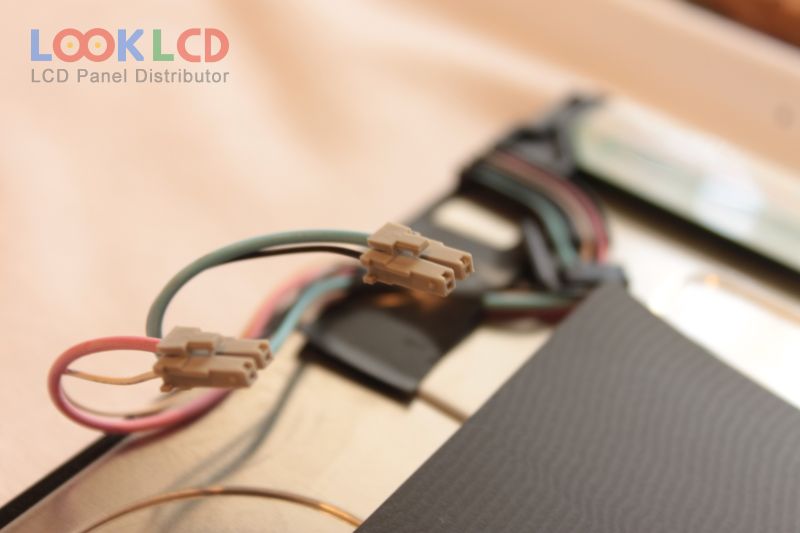

| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
