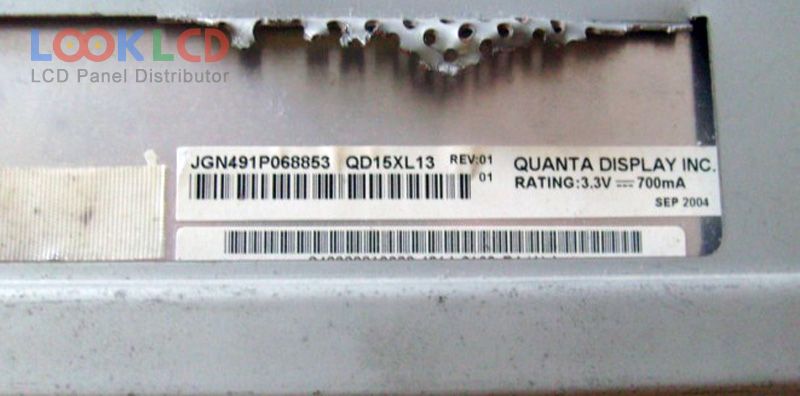

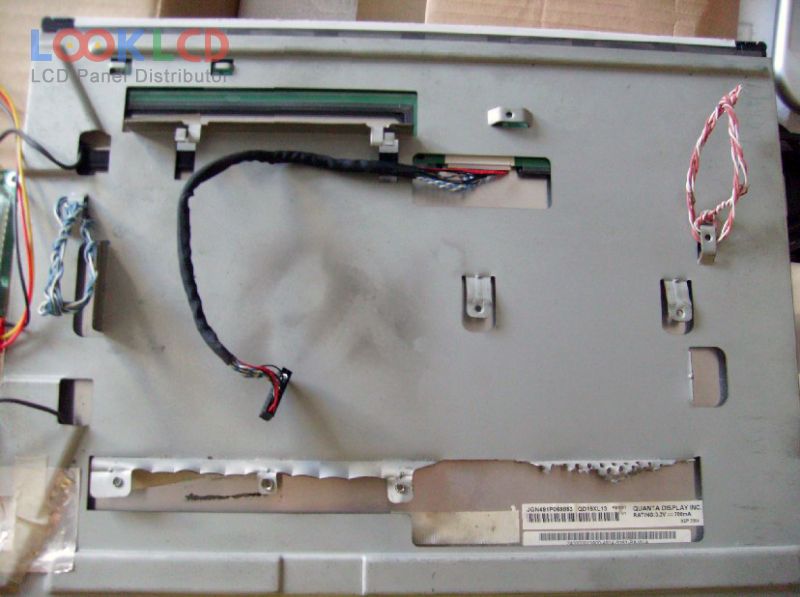

| PartNumber | QD15XL13 Rev.01 |
| Brand | QDI |
| Size | 15.0 |
| Application | DMPC |
| Resolution | 1024(RGB)×768 , XGA |
| Composition | LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 600:1 |
| Colors | 16.2M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | QDI |
| Panel Model | QD15XL13 Rev.01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 15.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 304.128×228.096 mm |
| Outline | 326.5×253.5 mm |
| Surface | Antiglare, Hard coating (3H), Antireflection |
| Contrast Ratio | 600:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC) |
| Response Time | 3/13 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/45/55 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 2 pcsCCFLWithout Driver |
| Signal Interface | LVDS (1 ch, 8-bit), 20 pins |
| Input Voltage | 3.3V (Typ.) |
| RoHS: |
