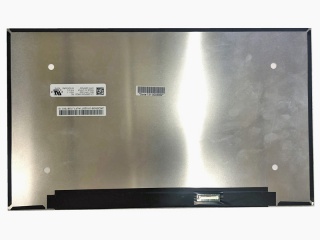

| PartNumber | M140NWR8 R0 |
| Brand | IVO |
| Size | 14.0 |
| Application | Laptop |
| Resolution | 1366(RGB)×768, WXGA, 112PPI |
| Composition | a-Si TFT-LCD , LCM |
| Brightness | - |
| CR | 500:1 |
| Colors | 262K |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | IVO |
| Panel Size | 14.0" |
| Display Area | 309.399(W)×173.952(H) mm |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) |
| Best View on | 6 o'clock |
| Display Colors | 262K |
| Frequency | 60Hz |
| Shape Style | Slim (PCBA Bent, T≤3.0mm) |
| Signal Interface | eDP (1 Lane) Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| Panel Model | M140NWR8 R0 |
| Panel Type | a-Si TFT-LCD , LCM |
| Pixel Format | RGB Vertical Stripe |
| Bezel Opening | - |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Display Mode | TN, Normally White, Transmissive |
| Response Time | 8 (Typ.)(Tr+Td) |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Touch Screen | Without |
| B140HAN01.3 | AUO | 14.0 | 1920×1080 |
| B140RTN01.0 | AUO | 14.0 | 1600×900 |
| HB140WX1-200 | BOE | 14.0 | 1366×768 |
| LP140WH4-TLN1 | LG Display | 14.0 | 1366×768 |
| LP140WH4-TLP1 | LG Display | 14.0 | 1366×768 |
| M140NWR1 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R0 | IVO | 14.0 | 1366×768 |
| M140NWR2 R1 | IVO | 14.0 | 1366×768 |
| M140NWR2 R2 | IVO | 14.0 | 1366×768 |
| M140NWR4 R2 | IVO | 14.0 | 1366×768 |
