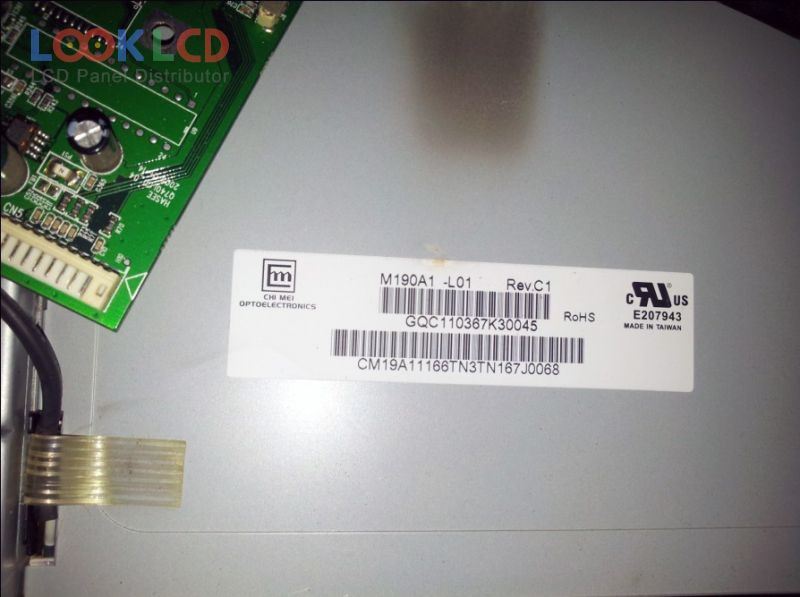

| PartNumber | M190A1-L01 |
| Brand | Innolux |
| Size | 19.0 |
| Application | DMPC |
| Resolution | 1440(RGB)×900 , WXGA+ |
| Composition | LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 16.2M |
| Backlight | CCFL |
| Interface | LVDS |
| Panel Brand | CMO |
| Panel Model | M190A1-L01 |
| Panel Type | a-Si TFT-LCD , LCM |
| Panel Size | 19.0 inch |
| Display Mode | TN, Normally White, Transmissive |
| Active Area | 410.4×256.5 mm |
| Outline | 427.2×277.4×17.5 mm |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) |
| Display Colors | 16.2M (6-bit + FRC) |
| Response Time | 2/6 (Typ.)(Tr/Td) |
| Viewing Angle | 75/75/70/60 (Typ.)(CR≥10)(L/R/U/D) |
| Frequency | 60Hz |
| Lamp Type | 4 pcsCCFLWithout Driver |
| Signal Interface | LVDS (2 ch, 8-bit), 30 pins |
| Input Voltage | 5.0V (Typ.) |
