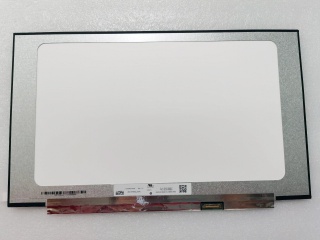

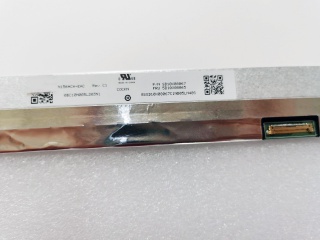

| PartNumber | N156HCA-EAC |
| Brand | Innolux |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920(RGB)×1080, FHD, 141PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 300 cd/m² (Typ.) |
| CR | 1000:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Panel Brand | Innolux |
| Panel Model | N156HCA-EAC (CMN151E) |
| Panel Size | 15.6" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 344.16(W)×193.59(H) mm |
| Bezel Opening | - |
| Outline Size | 350.66(W)×214.75(H) ×3.2(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 1000:1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Display Mode | AAS, Normally Black, Transmissive |
| Best View on | Symmetry |
| Response Time | 11/9 (Typ.)(Tr/Td) |
| Display Colors | 16.7M 45% NTSC |
| Lamp Type | WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Slim (PCBA Flat, T≤3.2mm) |
| Signal Interface | eDP (2 Lanes) , eDP1.2 , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| LP156WF1-TLC1 | LG Display | 15.6 | 1920×1080 |
| LTN156AT05-601 | Samsung | 15.6 | 1366×768 |
| N156HCA-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EA2 | Innolux | 15.6 | 1920×1080 |
| N156HGE-EAL Rev.C1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-L11 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LA1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LB1 | Innolux | 15.6 | 1920×1080 |
| N156HGE-LG1 | Innolux | 15.6 | 1920×1080 |
