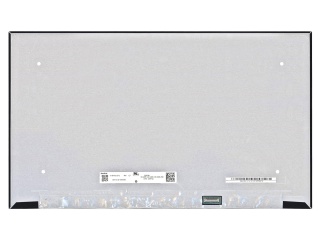

| PartNumber | N156HCE-G72 |
| Brand | Innolux |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 1920×1080 |
| Composition | LCM, a-Si TFT-LCD |
| Brightness | |
| CR | 1200:1 |
| Colors | 16.7M/1.06B |
| Backlight | WLED , 15K hours , With LED Driver |
| Interface | eDP |
| Manufacturer | Innolux |
| Model Name | N156HCE-G72 (CMN1529) 4 Compatible |
| Screen Size | 15.6 inch |
| Screen Type | LCM, a-Si TFT-LCD |
| Pixel Number | 1920(RGB)×1080 (FHD) 141PPI |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm) | 350.66 × 205.24 × 5 (H×V×D) |
| Bezel Area(mm) | 346.76 × 196.69 (H×V) |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 1200 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
| Response | 11/9 (Typ.)(Tr/Td) ms |
| Good View at | Symmetry |
| Work Mode | AAS, Normally Black, Transmissive |
| Color Depth | 16.7M/1.06B 100% sRGB |
| Outline Shape | Slim (PCBA Bent, T≤3.0mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Touchscreen | Without |
| Signal Type | eDP (2 Lanes) , eDP1.2 , Connector 30 pins |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C |
