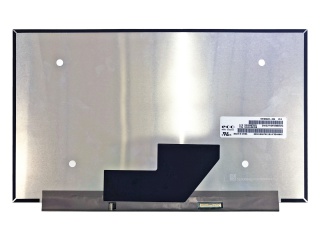

| PartNumber | NE156QUM-N6A |
| Brand | BOE |
| Size | 15.6 |
| Application | Laptop |
| Resolution | 3840×2160 |
| Composition | Oxide TFT-LCD, LCM |
| Brightness | |
| CR | 1400:1 |
| Colors | 16.7M |
| Backlight | WLED |
| Interface | eDP |
| Model | NE156QUM-N6A (BOE0809) |
| Diagonal Size | 15.6 inch |
| Type | Oxide TFT-LCD, LCM |
| Pixel Format | 3840(RGB)×2160 [UHD] 283PPI |
| Configuration | RGB Vertical Stripe |
| Active Area | 344.218(H)×193.622(V) mm |
| Outline Dim. | 350.66(H)×216.12(V) ×2.6(D) mm |
| Bezel Area | - |
| Treatment | Antiglare, Hard coating (3H) |
| Luminance | 600 cd/m² (Typ.) |
| Contrast Ratio | 1400:1 (Typ.) (TM) |
| View Direction | Symmetry |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) |
| Operating Mode | ADS, Normally Black, Transmissive |
| Support Color | 16.7M 100% Adobe RGB |
| Light Source | WLED , 15K hours , With LED Driver |
| Form Style | Slim (PCBA Flat, T≤3.2mm) |
| Designed For | Laptop |
| Frame Rate | 60Hz |
| Touch Panel | Without |
| Interface Type | eDP (4 Lanes) , eDP1.3 , HBR2 (5.4G/lane) , 40 pins Connector |
| Power Supply | 3.3V (Typ.) |
| Environment | Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 70 °C |
