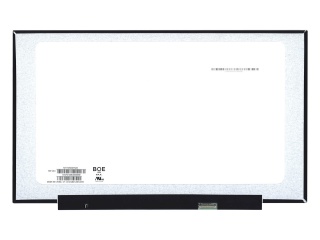

| PartNumber | NT173WDM-N25 |
| Brand | BOE |
| Size | 17.3 |
| Application | Laptop |
| Resolution | 1600(RGB)×900, HD+, 106PPI |
| Composition | a-Si TFT-LCD, LCM |
| Brightness | 250 cd/m² (Typ.) |
| CR | 500:1 |
| Colors | 262K |
| Backlight | 10S5P |
| Interface | eDP |
| Panel Brand | BOE |
| Panel Model | NT173WDM-N25 (BOE0954) |
| Panel Size | 17.3" |
| Panel Type | a-Si TFT-LCD, LCM |
| Pixel Format | RGB Vertical Stripe |
| Display Area | 382.08(W)×214.92(H) mm |
| Bezel Opening | - |
| Outline Size | 389.88(W)×236.52(H) ×3.5(D) mm |
| Surface | Antiglare, Hard coating (3H) |
| Contrast Ratio | 500:1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/40 (Min.)(CR≥10) |
| Display Mode | TN, Normally White, Transmissive |
| Best View on | 6 o'clock |
| Response Time | 12 (Typ.)(Tr+Td) |
| Display Colors | 262K 60% NTSC |
| Lamp Type | 10S5P WLED , 15K hours , With LED Driver |
| Frequency | 60Hz |
| Touch Screen | Without |
| Shape Style | Flat (PCBA Flat, T3.4~4.0mm) |
| Signal Interface | eDP (1 Lane) , eDP1.2 , HBR1 (2.7G/lane) , 30 pins Connector |
| Input Voltage | 3.3V (Typ.) |
| Environment | Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C |
| B173HW02 V1 | AUO | 17.3 | 1920×1080 |
| B173RW01 V0 | AUO | 17.3 | 1600×900 |
| B173RW01 V2 HW7A | AUO | 17.3 | 1600×900 |
| HSD173PUW1-A | HannStar | 17.3 | 1920×1080 |
| LP173WD1-TLC2 | LG Display | 17.3 | 1600×900 |
| LP173WD1-TLN1 | LG Display | 17.3 | 1600×900 |
| LP173WF3-SLB1 | LG Display | 17.3 | 1920×1080 |
| LTN173KT01-J01 | Samsung | 17.3 | 1600×900 |
| N173FGE-E23 | Innolux | 17.3 | 1600×900 |
| N173FGE-L23 | Innolux | 17.3 | 1600×900 |
